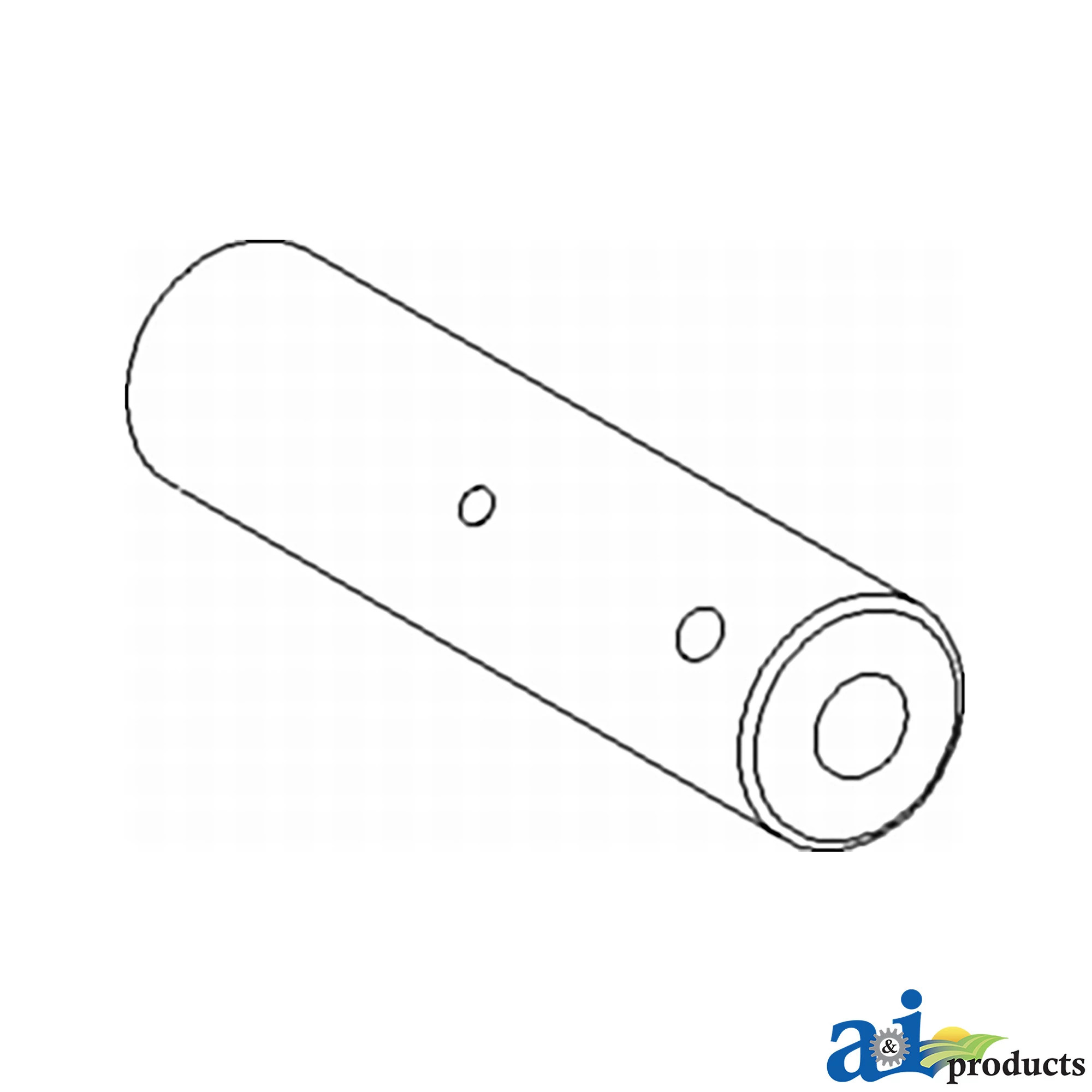

Z61813: Drilled Pin
John Deere · Part Number: Z61813
$58.14
- Drilled Pin designed for secure fastening and alignment in machinery applications
- Features an 8 mm (5/16 in) hole at the end, 78 mm (3.07 in) length, and 20.67 mm (0.81 in) pin diameter for versatile use
- Includes a 3.20 mm (0.13 in) side hole located 39 mm (1.54 in) from the end for additional attachment options
- Made from high quality general steel for durability and strength
- Heat treated finish ensures enhanced wear resistance and longevity
Special Order— Ships when available
Not currently in stock. You can still place your order and we'll work to source it for you.
Other Buying Options
Product Dimensions
Weight
0.42 lb
Height
0.81 in
Width
1.50 in
Length
3.08 in
A headless , cylindrically shaped , straight fastening device with no provisions for auxilliary securing devices. Also see other pin types in category 5580. Pin contacts are coded 8409-10.
