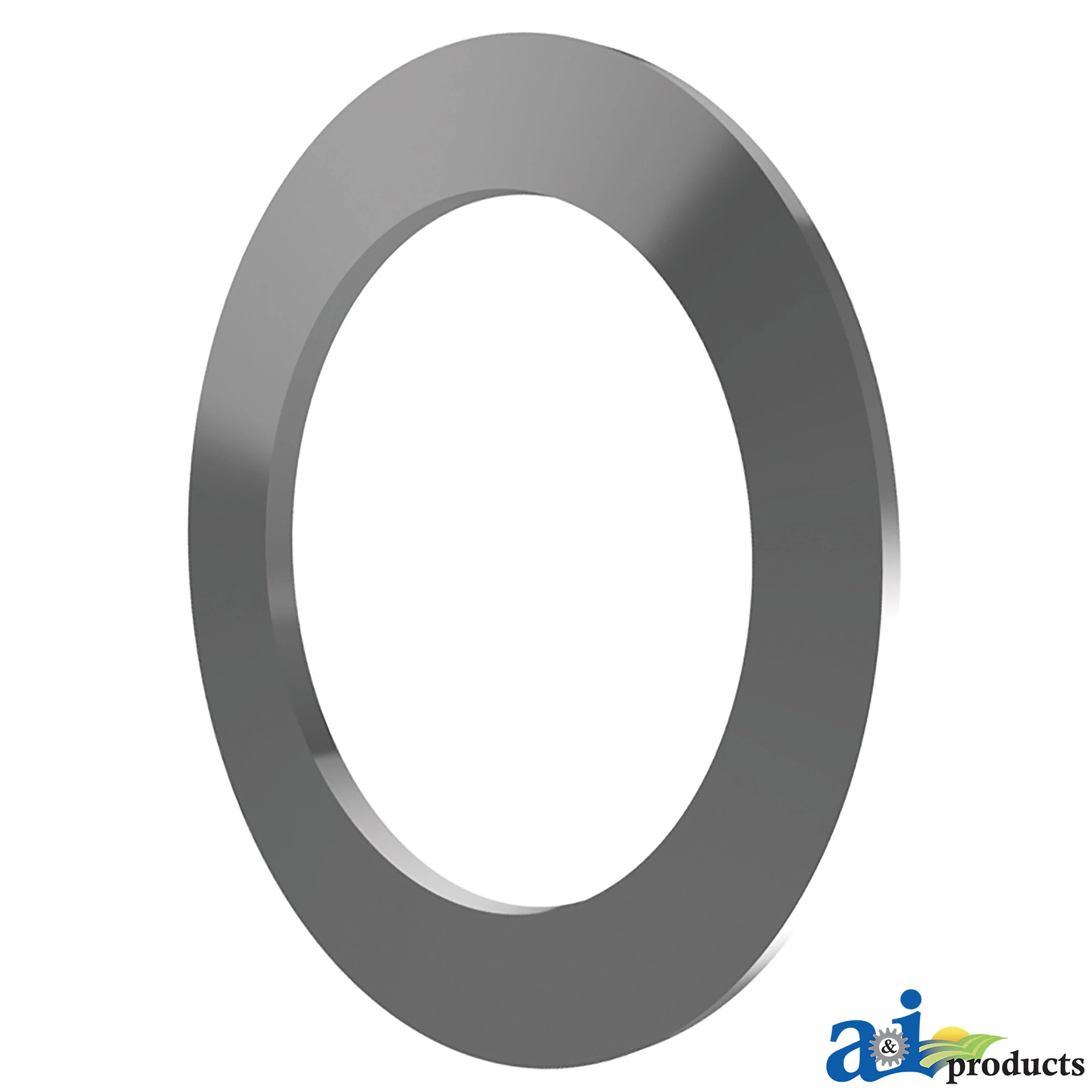

E96695: Disk Spring
John Deere · Part Number: E96695
$314.25
- Disk springs hold the pressure plates within the slip clutch, together, allowing controlled slipping between clutch plates to reduce damage
- Key specifications include an inside dimension of 146.05 mm (5-3/4 in) and an outside dimension of 203.20 mm (8.0 in), ideal for various mechanical assemblies
- Additional specification: 4 mm (0.16 in) thickness, ensuring durability and optimal performance under pressure
- High-performance disk spring designed for heavy-duty applications and load-bearing tasks
- Made from high quality alloy steel for enhanced strength and longevity
Special Order— Ships when available
Not currently in stock. You can still place your order and we'll work to source it for you.
Other Buying Options
Product Dimensions
Weight
1.07 lb
Height
8.00 in
Width
12.00 in
Length
0.40 in
A conically-formed annular disk that must be made and finished to closely defined specifications. Disk springs should not be confused with spring washers which are outwardly similar and are used mainly for retaining bolt and screw assemblies. Disk springs can be retrieved from PDR major 02 minor 06 by selecting on note "E"
