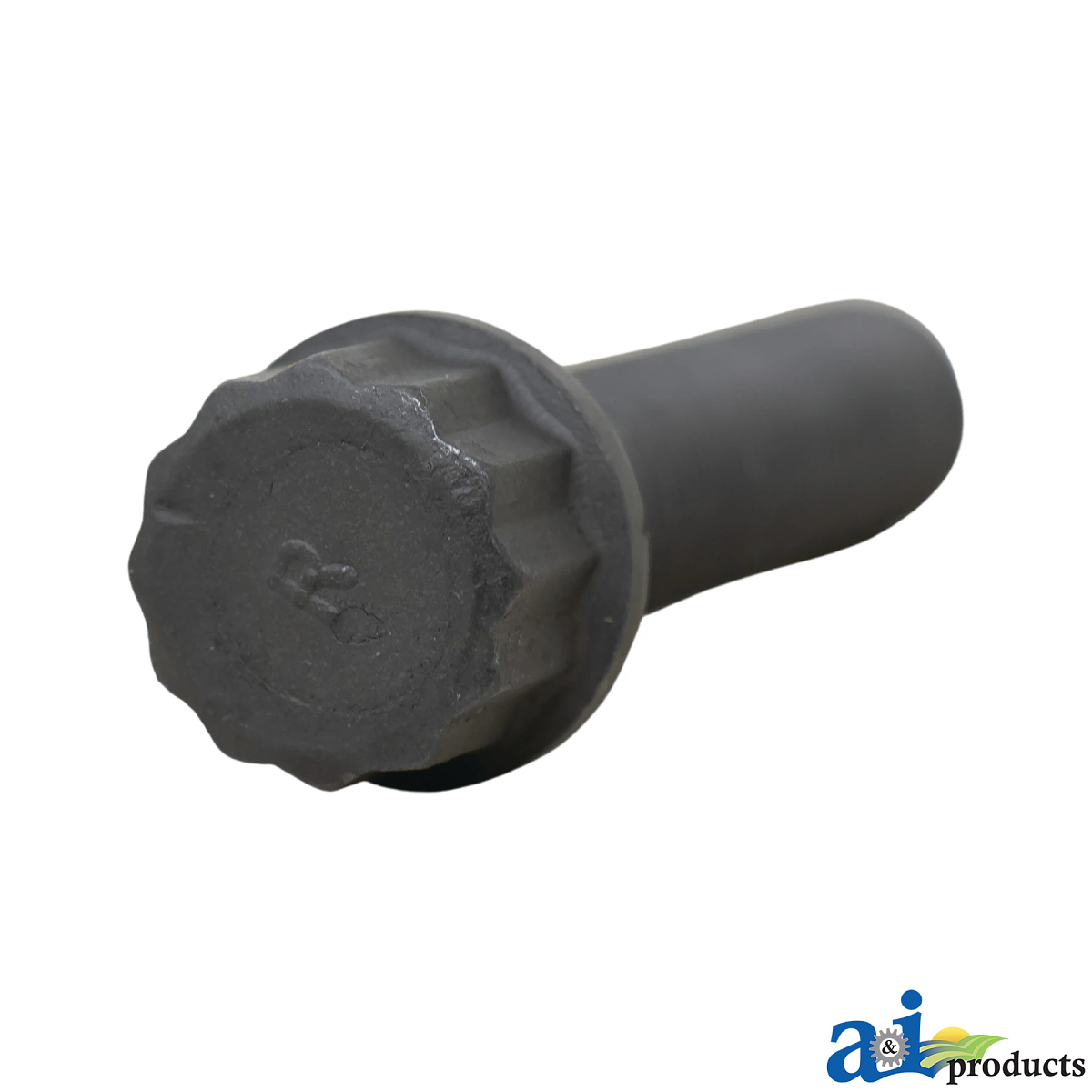

DZ120913: Connecting Rod Cap Screw, 9/16" X 2.402"
John Deere · Part Number: DZ120913
$8.68
Final Sale — This Item Is Not Eligible For Return
- High-performance connecting rod cap screw designed for securing connecting rods in engines
- Features a body length of 42.49 mm (1.67 in) and a diameter of 14.29 mm (9/16 in), with a total length of 61 mm (2.4 in) for robust and reliable use
- Equipped with a 12PT head type and UNJF threading, with a thread length of 18.51 mm (0.73 in) for precise and secure fastening
- Made from high quality general steel for durability and strength
- Finished with phosphate and oil low cof for enhanced corrosion resistance and reduced friction
Special Order— Ships when available
Not currently in stock. You can still place your order and we'll work to source it for you.
Other Buying Options
Product Dimensions
Weight
0.22 lb
Height
1.00 in
Width
3.50 in
Length
3.00 in
An externally threaded fastener of one nominal diameter designed for insertion through holes in assembled parts or into tapped holes and intended to be tightened or released by torquing a nut or the screw head.
