Decal, KR Height Indicator
Part #: 00.0211
$4.45
John Deere KR502 Parts & Accessories
63 parts and accessories that fit the John Deere KR502. Genuine OEM and quality aftermarket, from an authorized John Deere dealer. Ship nationwide or pick up locally.
Decal, Read Operator's Manual
Part #: 00.0619
$6.15
Decal, Pinching or Crushing Hazard
Part #: 00.0620
$8.22
Decal, High Pressure Fluid Hazard
Part #: 00.0621
$8.02
Decal, Built In The USA
Part #: 00.0770
$3.75
Pin, Safety Snap 3/8 x 2 1/2, Zinc
Part #: 03.0003
$9.82
Rivet, Pop 1/8 x 1/8 SS
Part #: 04.0007
$0.63
Snap Ring, Int .062 x 1.75
Part #: 04.0013
$3.82
Washer, .544 ID x .817 x .14 Red
Part #: 05.0116
$1.11
Washer, .544 ID x .817 X.14 Yel
Part #: 05.0117
$1.11
Hose, 1/4x48.00 SAE 100R17AR
Part #: 20.0185
$40.13
Coupler, Quick Male 1/4
Part #: 23.0104
$17.01
Cylinder, 1-1/2" x 8" Steering
Part #: 23.0129
$228.55
Fitting, 90 ME 3/8 x 3/8
Part #: 25.6801-06-06
$14.99
Grease Ftg, 1/4 SAE ST
Part #: 29.GF0001
$1.62
Grease FTG, 1/4 SAE 45
Part #: 29.GF0003
$2.88
Spring, Ext 2" OD x 8-3/8" LG
Part #: 41.0075
$19.47
Link, Spring Guide
Part #: 42.0466
$14.93
Clevis, Shackle 3/8 W/ Pin
Part #: 43.CS06
$36.50
Swivel Ball, 5/8" X 2"
Part #: 43.SB10F
$15.05
Top Link, Cat.#0, Adjustable
Part #: 47.0222
$52.02
Tube, Swivel Axle
Part #: 50.0050
$17.99
Yoke, Caster 13", High/Low
Part #: 50.0183
$80.39
Dust Cap, Bearing Mower Caster
Part #: 53.0080
$7.05
Wheel, Asm 13 x 5 x 6 Caster Blk Rim
Part #: 53.0213
$109.44
Bearing, Ball .75 ID x 1.78 OD
Part #: 55.0023
$11.71
Retainer, Roller Bearing 3/4"
Part #: 55.0114
$4.84
Bearing, Roller 2.25" Long
Part #: 55.0116
$30.33
Bushing, Swivel - Carriage
Part #: 61.VM101
$26.29
FRAME, HITCH
Part #: 62.1005
$561.51
Arm, Front Caster Mount
Part #: 62.1006
$144.28

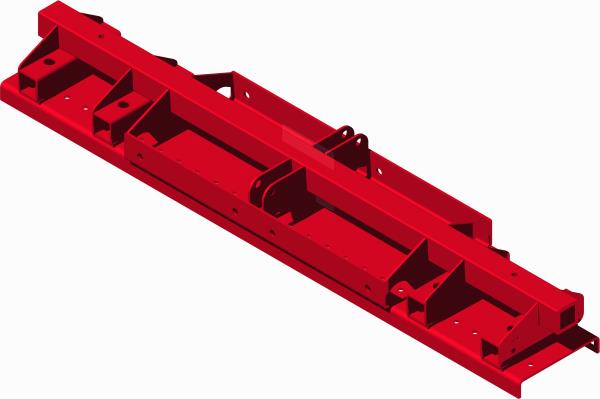

Frame, Main
Part #: 62.1009
$912.92
Pin, Angle Pivot
Part #: 64.1107
$162.76
Plate, Manual Adjust Gauge
Part #: 64.1108
$12.75
Bushing, Danuser Ball
Part #: 64.1109
$10.42
Spacer, Tine 24-3/8"
Part #: 64.1197
$21.42
Tine, Rake
Part #: 79.0043
$21.60
Chain, 1/4" x 2 Links
Part #: 81.0148
$4.43
Bolt, 5/16-18 UNC x 1 1/4
Part #: 90.0510
$0.81
Bolt, 3/8-16 UNC x 1 1/4
Part #: 90.0610
$0.81
Bolt, 3/8-16 UNC x 7-1/2
Part #: 90.0660
$4.43
Bolt, 7/16-14 UNC x 1 1/4
Part #: 90.0710
$0.98
Bolt, 7/16-14 UNC x 1 1/2
Part #: 90.0712
$0.98
Bolt, 1/2-13 UNC x 1 1/4
Part #: 90.0810
$1.39
Bolt, 1/2-13 UNC x 2
Part #: 90.0816
$1.58
Bolt, 5/8-11 UNC x 2 1/2
Part #: 90.1020
$2.81
Bolt, 5/8-11 UNC x 2 3/4
Part #: 90.1022
$2.57
Nut, 7/16-14 UNC
Part #: 92.07
$0.43
Nut, 5/8-18 UNF
Part #: 93.10
$0.91
Washer, Flat 5/16 SAE
Part #: 95.05
$0.26
Washer, Flat 3/8 SAE
Part #: 95.06
$0.26
Washer, Flat 1/2 SAE
Part #: 95.08
$0.26
Washer, Flat 5/8 SAE
Part #: 95.10
$0.43
Locknut, Stover 3/8-16 UNC
Part #: 99.A06
$0.55
Locknut, Center 3/8-16 UNC
Part #: 99.A06C
$0.68
Locknut, Stover 5/8-11 UNC
Part #: 99.A10
$1.58
Locknut, Stover 3/4-16 UNF
Part #: 99.A12NF
$3.15
Shim, Steel 3/4 x 1 x .062 Blk
Part #: 99.B0052
$1.65
Washer, MACH3/4 x1-1/4 10GA ZP
Part #: 99.B0057-2
$1.18
No image
Manual, KR502 Owners
Part #: 09.10065
$20.18
John Deere KR502 parts — frequently asked
How many parts fit the John Deere KR502?
Koenig Marketplace lists 63 parts and accessories that fit the John Deere KR502.
Are these genuine John Deere parts for the KR502?
Yes — Koenig is an authorized John Deere dealer, so you'll find genuine OEM John Deere parts alongside quality aftermarket options that fit the John Deere KR502.
How do I find the right part for my KR502?
Search by John Deere part number or browse by category above. Every part shown is matched to the John Deere KR502 by its compatible-models data.
Can I get KR502 parts shipped or pick them up locally?
Both. Koenig ships John Deere KR502 parts nationwide, and you can also pick up at one of Koenig's stores.
