Decal, Ventrac
Part #: 00.0383
$17.93
John Deere KL480 Parts & Accessories
102 parts and accessories that fit the John Deere KL480. Genuine OEM and quality aftermarket, from an authorized John Deere dealer. Ship nationwide or pick up locally.
Decal, Read Operator's Manual
Part #: 00.0619
$6.15
Decal, Pinching or Crushing Hazard
Part #: 00.0620
$8.22
Decal, Shield Missing
Part #: 00.0625
$6.32
Decal, Entanglement Hazard
Part #: 00.0626
$5.69
Decal, Cutting/Dismemberment Hazard
Part #: 00.0703
$12.04
Decal, Built In The USA
Part #: 00.0770
$3.75
Cotter Pin, 5/32 x 1, Zinc
Part #: 02.CP0508
$0.65
Retaining Ring, Ext 1.000 Shft
Part #: 04.0026
$6.93
Rivet, Pop 1/8" x 1/4" SS
Part #: 04.0029
$0.48
Bumper, Neoprene 18-12 Ga
Part #: 05.0062
$1.18
Bumper, Rubber Cylindrical
Part #: 05.0095
$3.97
Pipe, Breather Plug 1/8
Part #: 29.0090
$5.04
Pipe, Bushing 1/8 x 1/4 Galv
Part #: 29.B0204G
$4.13

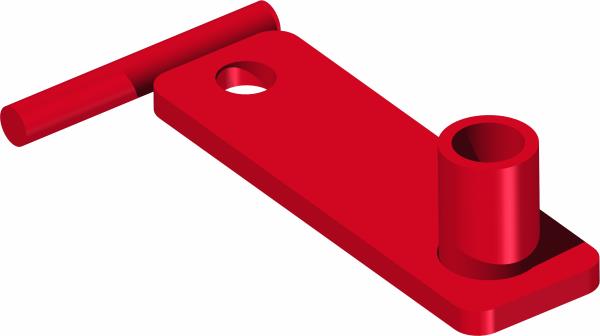

Arm, Idler Chain Tightener
Part #: 40.0290
$44.06
Spring, Single Torsion LH
Part #: 41.0066
$11.61
Spring, Comp 13/16 ID x 2-1/2l
Part #: 41.0073
$5.02
Shield, Top Pivot Shaft
Part #: 42.0434
$76.04

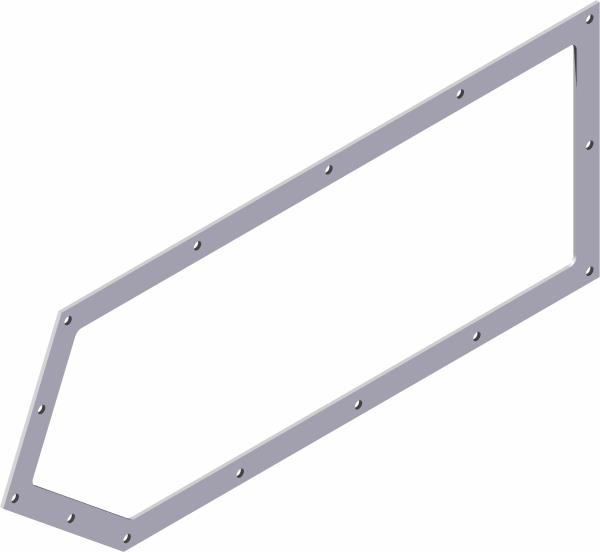

Gasket, Oil Seal
Part #: 44.0268
$34.28
Latch, Rubber Draw T-Handle Only
Part #: 47.0127-1
$13.29
Latch, Rubber Draw Post Only
Part #: 47.0127-2
$8.86
Bearing, Cone 1.000
Part #: 55.0075
$16.98
Bearing, Cup 1.980
Part #: 55.0076
$10.22

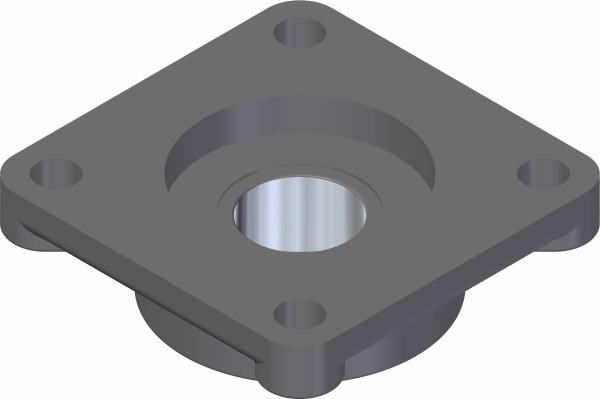

Bearing, Flange 1-1/4S
Part #: 55.FB22020S
$89.17
Bearing, Flange Block 1 1/2
Part #: 55.FB22024
$71.88

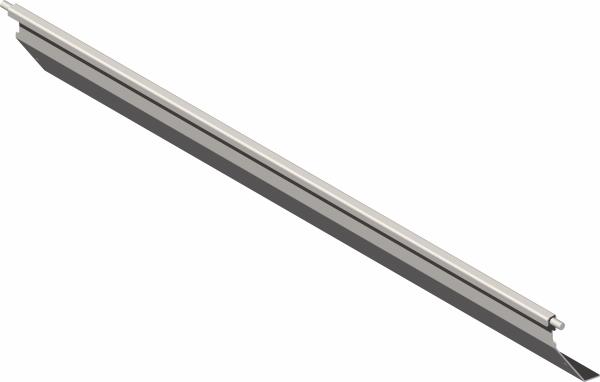

Flap, Dirt KL480
Part #: 60.0785
$116.51
Shield, Drive Belt Gear Box
Part #: 60.0786
$187.49
Cover, Chain Drive
Part #: 60.0787
$44.63
Shield, Drive Belt
Part #: 60.0788
$68.30

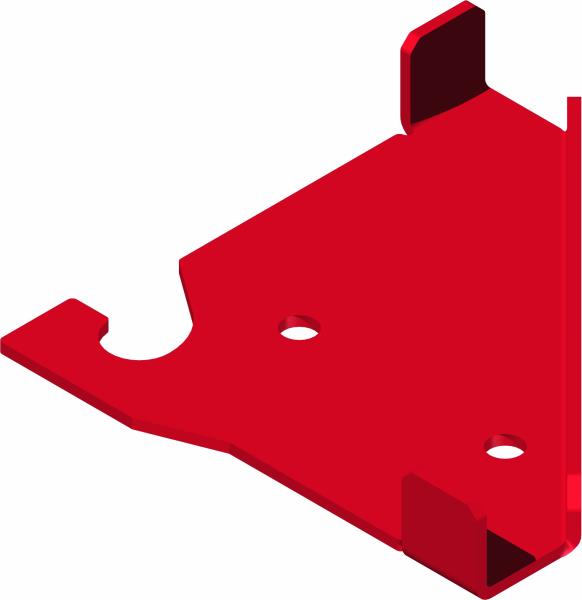

Retainer, Jack Stand Plate
Part #: 60.0880
$22.14

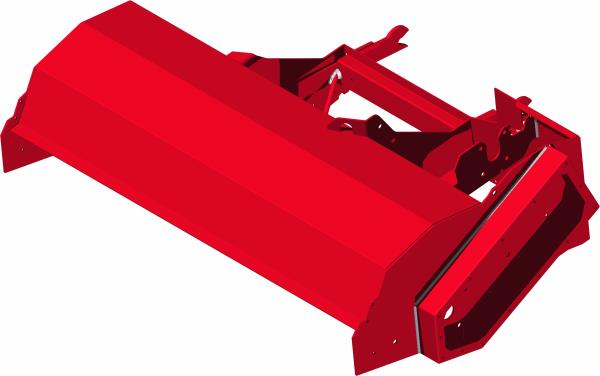

Frame, Main
Part #: 62.0893
$1805.28

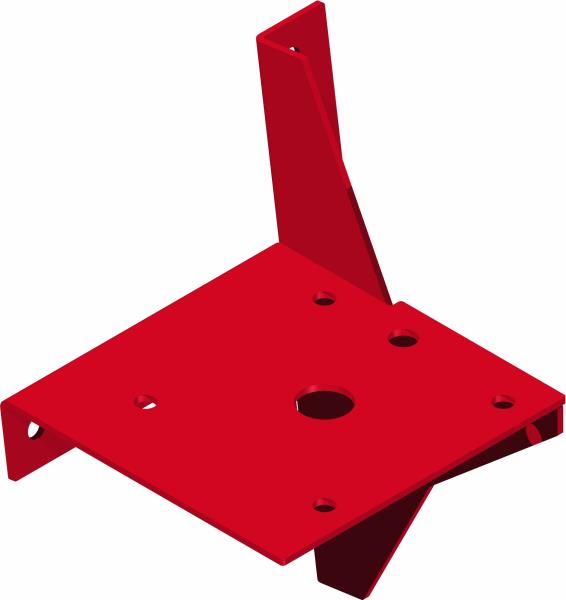

Plate, Gearbox Mount KL480
Part #: 62.0894
$89.79

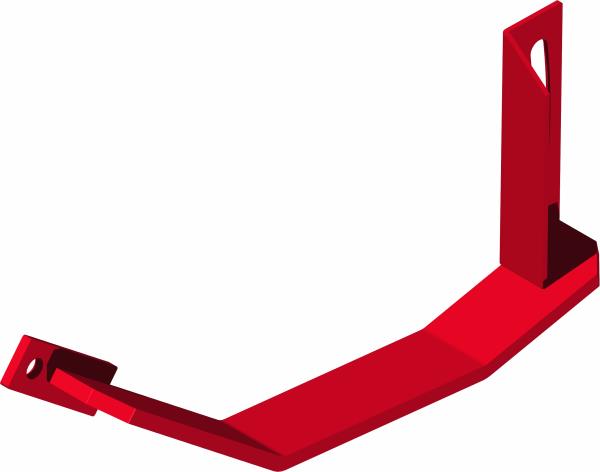

Shoe, Skid Right Side
Part #: 62.0895
$90.16

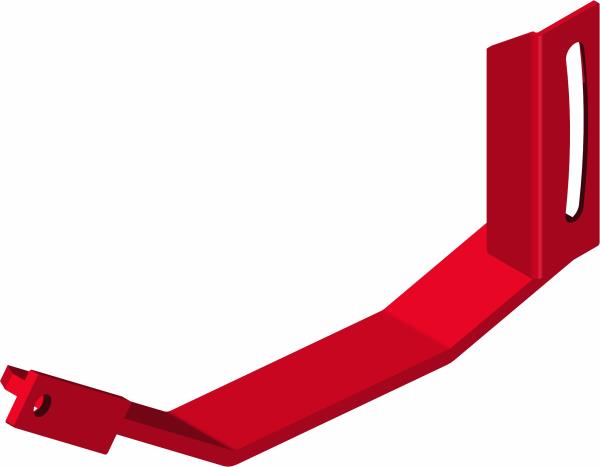

Shoe, Skid Left Side
Part #: 62.0896
$90.16

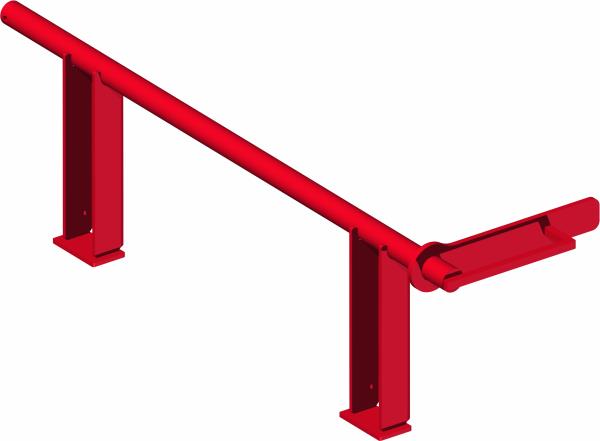

Stand, Jack
Part #: 62.1003
$175.61
Stiffener, Gear Box Mount
Part #: 64.0906
$22.51

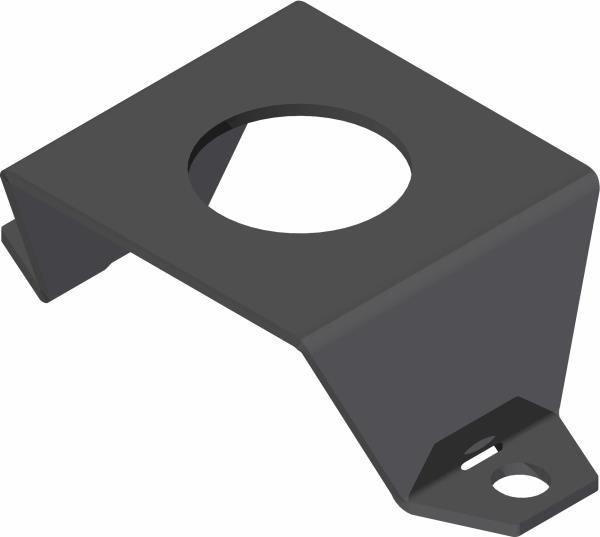

Shield, Bearing Protector
Part #: 64.0908
$55.39

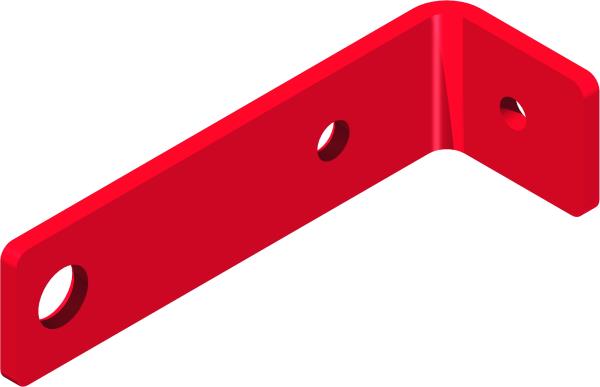

Bracket, Bumper Mount
Part #: 64.1372
$7.36

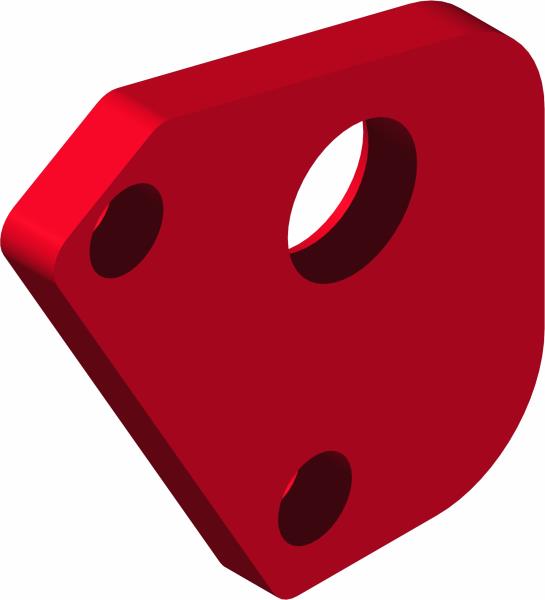

Plate, Dirt Flap Mount
Part #: 64.1373
$10.16

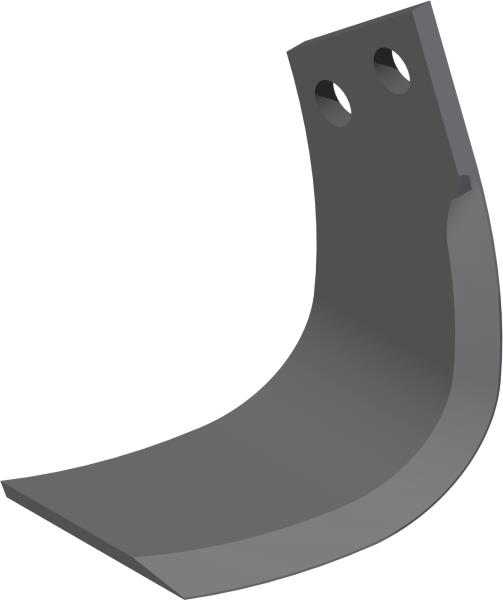

Tine, Tiller LH
Part #: 79.0049-L
$13.38
Tine, Tiller RH
Part #: 79.0049-R
$13.38

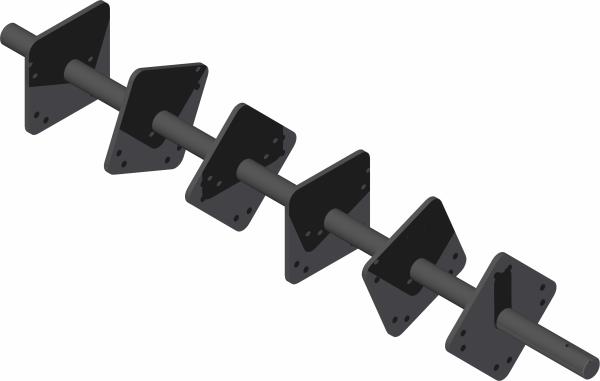

Shaft, Main Rotor
Part #: 80.0310
$788.95

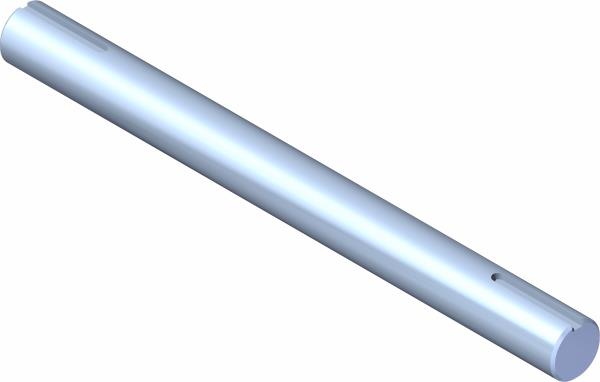

Shaft, Jack
Part #: 80.0311
$109.49
Belt, B66
Part #: 81.B066
$48.05

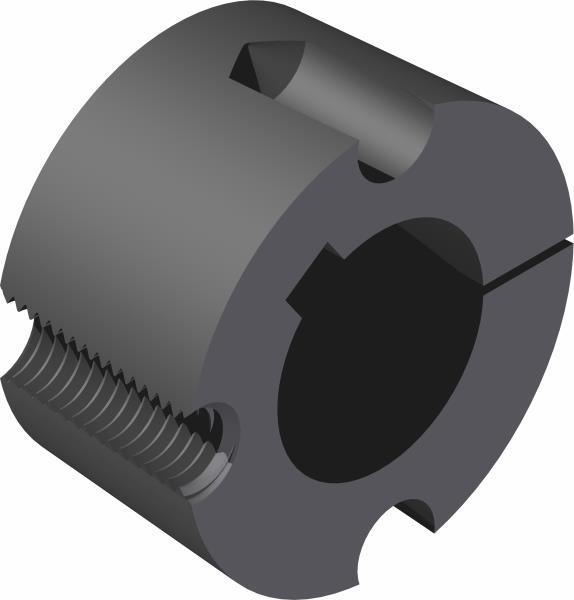

Bushing, 1210 x 1" Taper Lock
Part #: 83.121016
$41.48
Bushing, 1615 x 1-1/2 Taperloc
Part #: 83.161524
$58.96

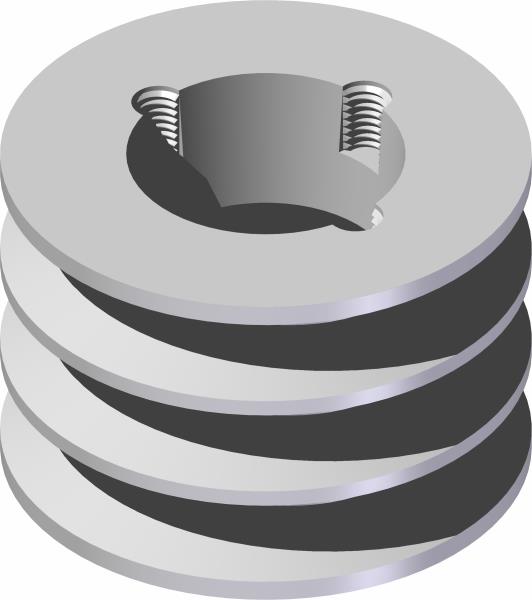

Pulley, 3B 3.6" TB-Bushing
Part #: 83.3TB36TB
$130.27

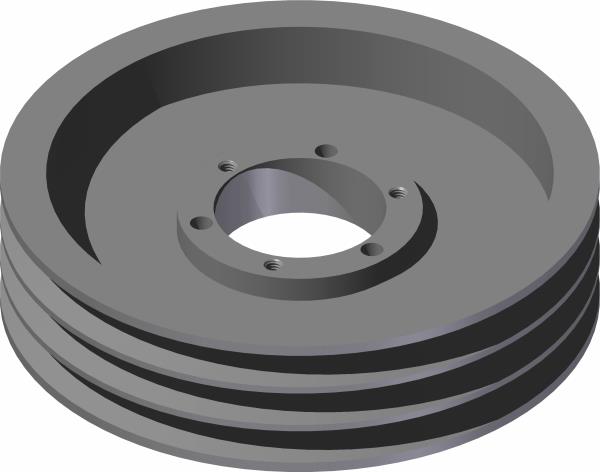

Pulley, 3-Groove x 9.4" Dia
Part #: 83.3TB94
$266.93

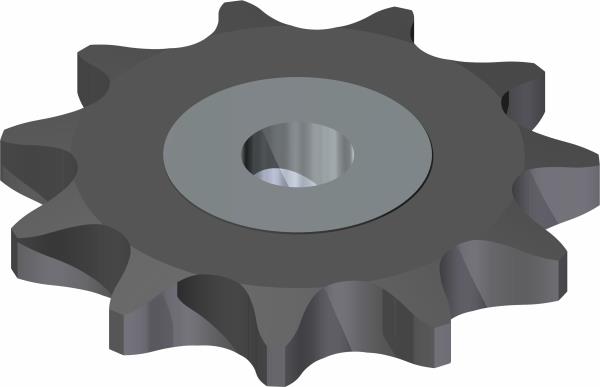

Sprocket, Idler #80 11-T
Part #: 83.8011012
$48.42
Pulley, 8" H-Bush
Part #: 83.BK80H
$71.62
Bushing, 1" Split 1/4" Key
Part #: 83.H16S
$19.34
Sprocket,#80 9-T HRD 1-1/4 Bor
Part #: 83.H800920
$61.27
Sprocket, #80 15-T HRD
Part #: 83.H80TB15
$130.69

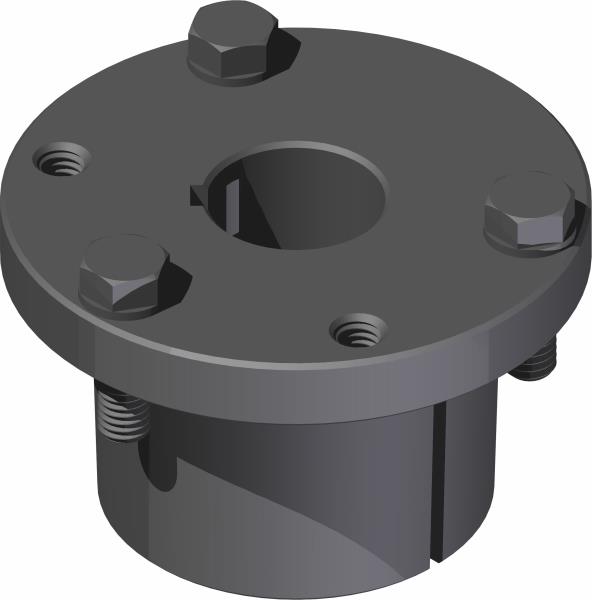

Bushing, 1 1/4" Q1
Part #: 83.Q120
$46.47

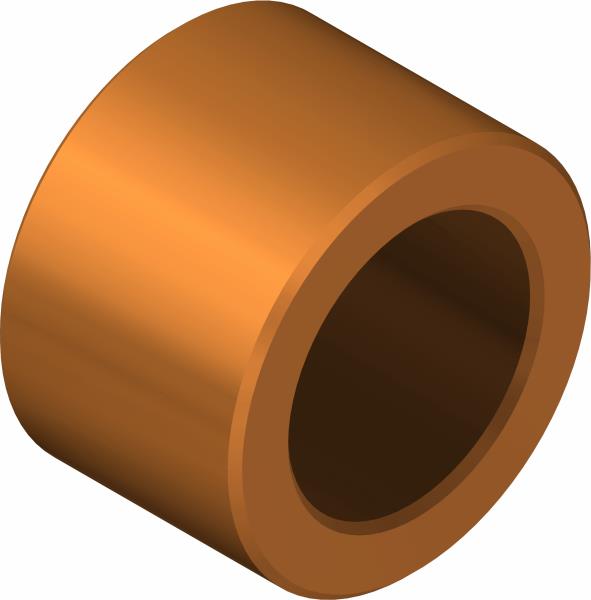

Bushing, 1/2 ID x 3/4 OD x 1/2
Part #: 85.B0015
$13.94
Bushing, 1/2 ID x 5/8 OD x 5/8
Part #: 85.B0027
$2.85
Key, 1/4 x 1 1/4
Part #: 85.K0410
$2.43
No image
Manual, KL480 Owners
Part #: 09.10137
$21.55
No image
Chain, Roller #80 x 43" KL480
Part #: 81.0138
$70.26
No image
Belt, BX35
Part #: 81.BX035
$31.88
John Deere KL480 parts — frequently asked
How many parts fit the John Deere KL480?
Koenig Marketplace lists 102 parts and accessories that fit the John Deere KL480.
Are these genuine John Deere parts for the KL480?
Yes — Koenig is an authorized John Deere dealer, so you'll find genuine OEM John Deere parts alongside quality aftermarket options that fit the John Deere KL480.
How do I find the right part for my KL480?
Search by John Deere part number or browse by category above. Every part shown is matched to the John Deere KL480 by its compatible-models data.
Can I get KL480 parts shipped or pick them up locally?
Both. Koenig ships John Deere KL480 parts nationwide, and you can also pick up at one of Koenig's stores.
